Item

1000W

blade diameter

3.2m

material of the blades

Fiberglass-Reinforced Plastic

rated rotor speed

360r/min

rated speed

8m/s

rated Power

1000W

max Power

1200w

Max start torque (n/m)

＜0.4

output voltage

48V

start up wind speed

2.5(m/s)

work speed

3-25(m/s)

security wind speed

 50(m/s)

height of guy cable tower

6(m)

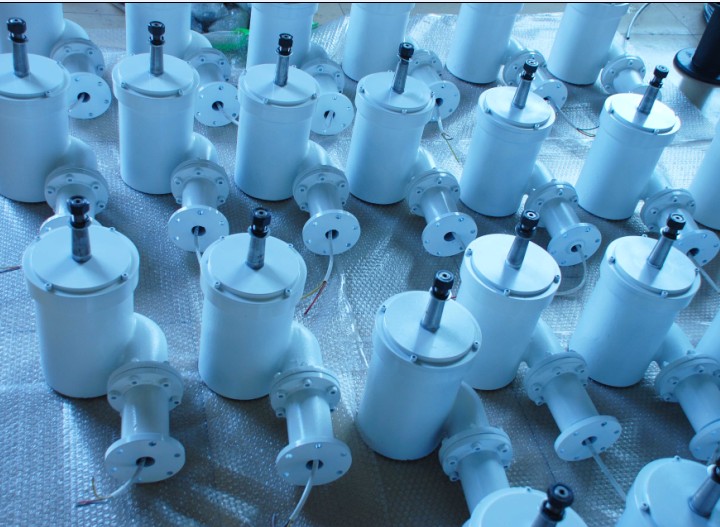

generator type

3-phase AC PM, cast steel

top quality (generator +blades)

55kg

Suggest batteries

  4pcs 12v150ah

Service life

  >15 years

output controller system

Wind solar hybrid controller，Off--grid inverter

Mated solar panel

48v200w--400w

Class of insulation

B

Material of enclosure

20# seamless tube

Material of magnet steel

neodymium-iron-boron 38sh

Material of stator

QZY-2/180/470

Corrosion prevention

Zinc coated、painting

Blades shape

3 FRP blades

Over speed protection

Yaw automatically, electromagnetism protection,

shaft wind pressure tail protection

Support loads

Small refrigerator, washing machine、water pump(550)、electric cooker、color TV、lighting、electric fan、charging、warming, computor, electric tools below 600w

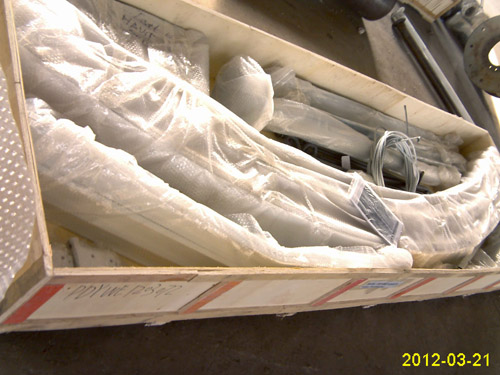

model

Dimension mm

volume

Gross weight（KG）

quantity

1000W

Generator and blades

1700×560×380=0.3618m³

0.46m³

105

3

Guy cable tower

3000×130×130=0.0507m³

20

3000×130×130=0.0507m³

20
