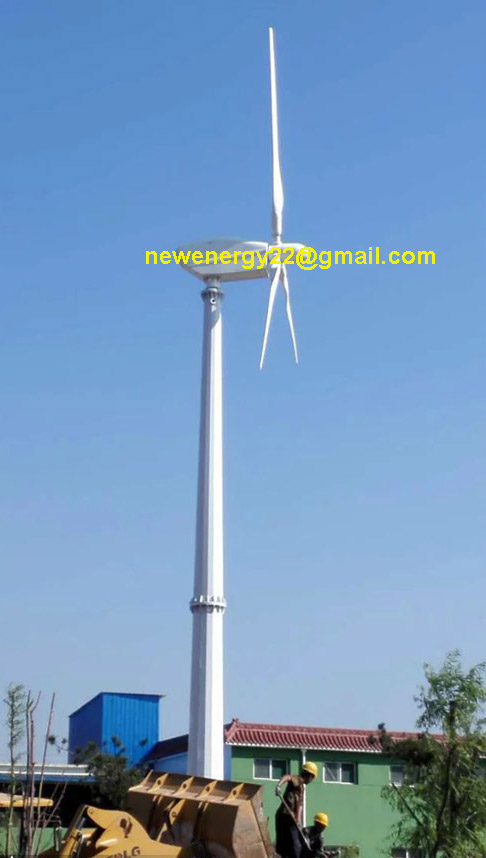

Product name : wind turbine new design 50kw
Item :
Details :
 Qingdao Wind Power Generator Co Ltd. Professionally produce wind turbine, From 2004, we begin to work in wind energy develop and research, produce.

Power range from 300w to 50kw.

The advantage of our wind turbine is low rated wind speed. It means around 7m/s-9m/s the wind turbine could reach rated power. This means it could make full use of the wind energy even at low wind speed area, like 4m/s to 6m/s.



Could supply you with wind solar hybrid solution. And pure wind system or pure solar panel system.  The 30kw, 50kw is the pitch control wind turbine.

Offer you with best price-performance ratio solution according to your requirements.

Model

XGBJ-50KW

Rated power

50KW

Max power

55KW

Blades diamter

16.0m

Blades material

FRP

Rated rpm

75r/min

Start wind speed

3(m/s)

Rated wind speed

10(m/s)

Working wind speed

4-25m/s

Safe wind speed lower tan

50m/s

Motor type

Direct drive permanent magnet generator 3-phase AC PM

Output voltage

DC360v-DC520v

Insulation level

B

Working temperature

-25 - 55

yaw mode

Yaw automatically

Overspeed protection

Pitch control over speed protection

Ausiliary power supply

no

Tower type

Guy cable tower or mono pole tower

Tower height

18-24m

Noise level

<70dB

Top weight

3000kg

IP code

IP54

Surface treatment

Zinc plating surface paint

Controller and inverter

Off gridPWM wind solar hybrid controller,inverter or grid tie inverter
