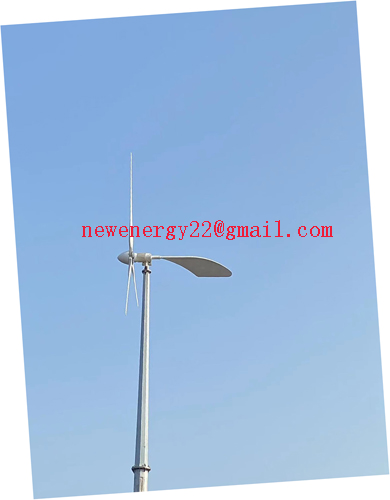

wind turbine new design 3kw

Product name : wind turbine new design 3kw

Item :

Details :

Item	3000W
blade diameter	4.5m
material of the blades	Fiberglass-Reinforced Plastic
rated rotor speed	240r/min
rated speed	9m/s
rated Power	3000W
max Power	4000w
Max start torque N/M	＜1.0
output voltage	120V
start up wind speed	3(m/s)
work speed	3-25(m/s)
security wind speed	50(m/s)
height of guy cable tower	9(m)
generator type	3-phase AC PM
top quality except tower	120kg
Suggest batteries	10pcs 12v200ah
Service life	>15 years
output controller system	Controller, inverter
Mated solar panel	120v600w--1300w
Class of insulation	B
Material of enclosure	20# seamless tube
Material of magnet steel	neodymium-iron-boron 38sh
Material of stator	QZY-2/180/470
Corrosion prevention	Zinc coated、painting
Blades shape	3 FRP blades
Over speed protection	Yaw automatically, electromagnetism protection

Qingdao XINGGUANG Wind Power Generator Co Ltd. Professionally produce wind turbine, From 2004, we begin to work in wind energy develop and research, produce.

Power range from 300w to 50kw.

The advantage of our wind turbine is low rated wind speed. It means around 7m/s-9m/s the wind turbine could reach rated power. This means it could make full use of the wind energy even at low wind speed area, like 4m/s to 6m/s.

Could supply you with wind solar hybrid solution. And pure wind system or pure solar panel system. The 30kw, 50kw 500kw,is the pitch control wind turbine.

Offer you with best price-performance ratio solution according to your requirements.

Wind turbine, Solar panel,Wind solar hybrid system,Solar street lighting,

Wind solar hybrid street lighting
