Product name : wind turbine 5kw 10kw 15kw 20kw 30kw 50kw 100kw
Item : X series
Details :

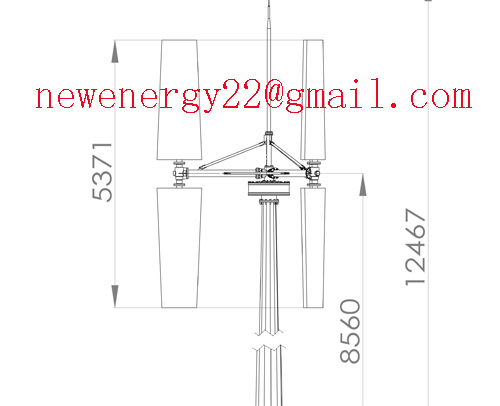

XG-H20KW DSTAR VAWT new design

https://youtube.com/shorts/7mKYUH3S2-w



Rated power W

20000

Max power W

24000

Diameter m

5.4280*4*2

Rotation diameter (direction rudder)m

15

Blades qty

10pcs

Blades material

aluminium alloy

Blades length m

7.2m

Wind wheel height m

7.8m

RPM(r/min)

42 PMG dual generator

Rated speed m/s

16

Start wind speed m/s

3

Working speed m/s

3-40

Safety m/s

50

Output voltage DCv

48Vcustomization

Tower height (m)

8

Top weight (kg)

350

Output control

Controller and inverter

Insulation level

F

Generator shell material

Carbon steel

Overspeed protection

Electromagnetic protection


1. High power generation efficiency, able to achieve electricity output under low wind speeds.



2. Low speed, low noise, strong resistance to strong winds, and high safety factor. Due to the use of resistance type blades, the operating speed will never exceed the speed of the wind during operation. When the blade speed ratio is 0.7, it will operate safely at a wind speed of 30m/s.



3. The mechanical structure is reasonable and the failure rate is low.

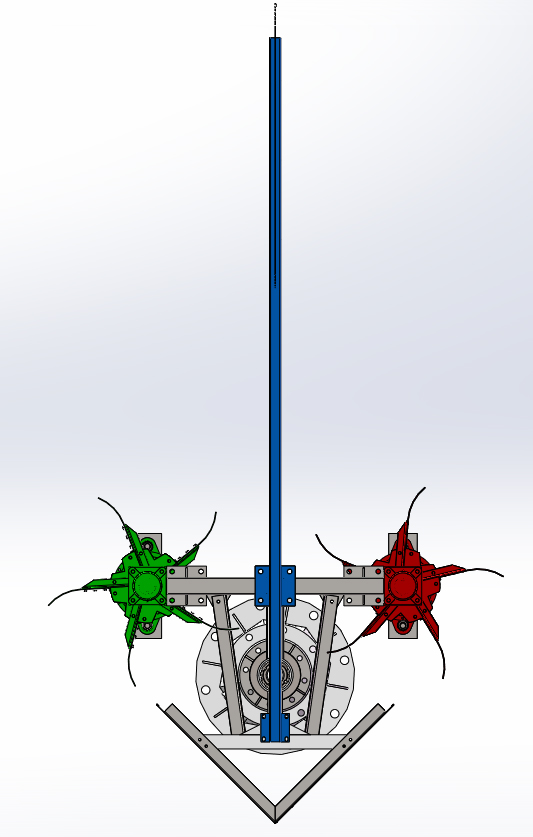

4. The blade assembly can achieve self rotation and revolution, without causing wind resistance during operation and affecting power generation.



5. The utilization coefficient of wind energy is more than three times that of the conventional vertical axis.



6. Adopting a unique sealing structure, achieving thorough moisture and dust prevention.



7. Adopting direct drive permanent magnet generator and efficient rare earth material.
