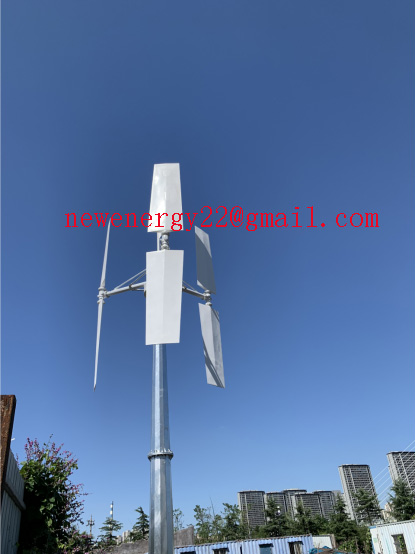

vertical axis wind turbine new design 10kw

Product name : vertical axis wind turbine new design 10kw

Item :

Details :

Rated power W	5000
Max power W	7200
Diameter m	3.6
Blades quantity	3 set
Blades length m	2.4 meters, with 2 blades and an automatic transmission assembly, with a total height of 5.4 meters
Blades width m	800mm
Blade type	resistant
Blade material	FRP
Wind turbine operation mode	Revolution mode
RPM(r/min)	40
Rated wind speed m/s	12
star wind speed m/s	3
Working wind speed m/s	3-25
Survival wind speed m/s	40
Ouput voltage DCv	216V
Tower height (m)	10
Top weight (kg)	900
Output control	Controller and inverter
Insulation level	B
Material of the generator	Carbon steel
Overspeed protection	Electromagnetic protection
Control and inverter	Grid connection adopts: control inverter integrated machine. Off grid use: controller, inverter

Professionally produce wind turbine, From 2004, we begin to work in wind energy develop and research, produce.

Power range from 300w to 50kw.

The advantage of our wind turbine is low rated wind speed. It means around 7m/s-9m/s the wind turbine could reach rated power. This means it could make full use of the wind energy even at low wind speed area, like 4m/s to 6m/s.

Could supply you with wind solar hybrid solution. And pure wind system or pure solar panel system. The 30kw, 50kw 500kw,is the pitch control wind turbine.

Offer you with best price-performance ratio solution according to your requirements.
