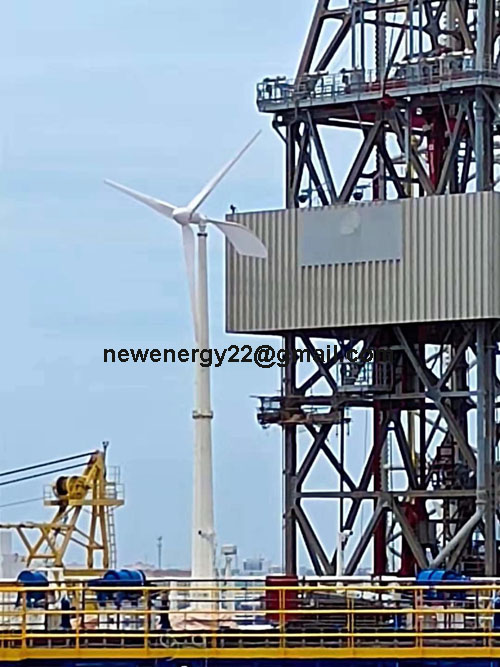

variable pitch wind turbine new design 50kw

Product name : variable pitch wind turbine new design 50kw

Item :

Details :

Model	50KW
Rated power	50KW
Max power	55KW
Blades diamter	16.0m
Blades material	FRP
Rated rpm	75r/min
Start wind speed	3(m/s)
Rated wind speed	10(m/s)
Working wind speed	4-25m/s
Safe wind speed lower tan	50m/s
Motor type	Direct drive permanent magnet generator 3-phase AC PM
Output voltage	DC360v-DC520v
Insulation level	B
Working temperature	-25℃ - 55℃
yaw mode	Yaw automatically
Overspeed protection	Pitch control over speed protection
Ausiliary power supply	no
Tower type	Guy cable tower or mono pole tower
Tower height	18-24m
Noise level	<70dB
Top weight	3000kg
IP code	IP54
Surface treatment	Zinc plating surface paint
Controller and inverter	Off grid：PWM wind solar hybrid controller,inverter or grid tie inverter

Professionally produce wind turbine, From 2004, we begin to work in wind energy develop and research, produce.

Power range from 300w to 50kw.

The advantage of our wind turbine is low rated wind speed. It means around 7m/s-9m/s the wind turbine could reach rated power. This means it could make full use of the wind energy even at low wind speed area, like 4m/s to 6m/s.

Could supply you with wind solar hybrid solution. And pure wind system or pure solar panel system. The 30kw, 50kw 500kw,is the pitch control wind turbine.

Offer you with best price-performance ratio solution according to your requirements.
