Model

10KW

Rated power

10KW

Max power

12KW

Blades diamter

7.5m

Blades material

FRP

Rated rpm

180 r/min

Start wind speed

3(m/s)

Rated wind speed

10(m/s)

Working wind speed

4-25m/s

Safe wind speed lower tan

50m/s

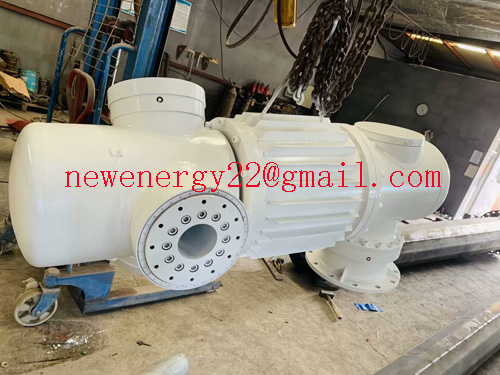

Motor type

Direct drive permanent magnet generator 3-phase AC PM

Output voltage

DC48v-DC520v可选

Insulation level

B

Working temperature

-25℃ - 55℃

Overspeed protection

Pitch control over speed protection

Ausiliary power supply

no

Tower type

Guy cable tower or mono pole tower

Tower height

10-15m optional

Noise level

<70dB

Top weight

540kg

IP code

IP54

Surface treatment

Zinc plating surface paint

Controller and inverter

Off grid：PWM wind solar hybrid controller,inverter or grid tie inverter
