Product name : variable pitch wind turbine 10kw hydraulic tower
Item :
Details :
 The main advantages of this technology are:



1. The main components are made of imported materials, and the pitch system can operate 300000 times without pressure drop, with a pressure drop of 10% for 500000 times. 20% pressure drop after 1 million cycles. Based on 300000 calculations, the service life exceeds 30 years in strong wind weather operation.



2. Active real-time pitch control does not require external support, such as auxiliary motors, hydraulic systems, push rods, screw rods, and other external forces to force pitch control.



3. Free to face the wind, with zero fault in the downwind direction. There is no need for support from yaw motors, brake pads, wind direction indicators, anemometers, etc. to support the yaw system, and due to excessive auxiliary equipment and accessories, the failure rate is high.



4. The entire system does not require external power supply, fans, controller inverters do not consume power, and backup power and batteries are not required for control.



5. The unit braking system is soft braking, which will cause the blades to pitch and stop. Do not adopt forced braking mode.



6. In order to prevent cable twisting, a high-end conductive slip ring is equipped. The unit model has 3-6 circuit outputs, each with an independent slip ring, which will not cause circuit short circuiting, thus achieving a slip ring service life of more than 10 years. The transmission cable of this unit only has 3-6 channels, so there is no need for automatic unwinding. (Automatic cable termination failure can cause cable twisting)



7. The installation of the entire unit is simple, without excessive cable connections and debugging of auxiliary equipment.


Model

VP-10KW

Rated power

10KW

Max power

12KW

Blades diamter

7.5m

Blades material

FRP

Rated rpm

180 r/min

Start wind speed

3(m/s)

Rated wind speed

10(m/s)

Working wind speed

4-25m/s

Safe wind speed lower tan

50m/s

Motor type

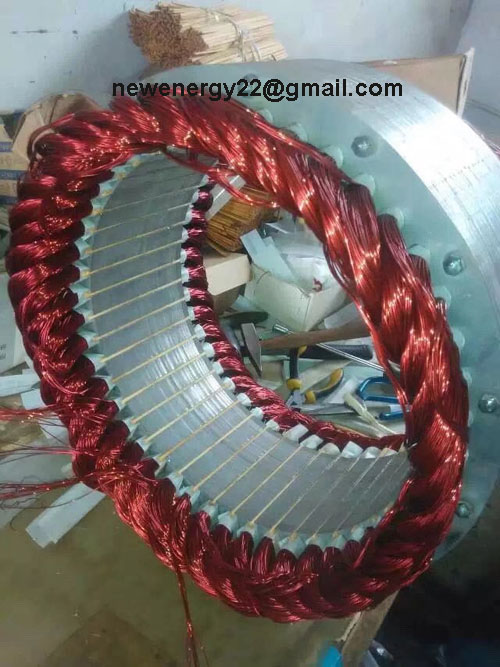

Direct drive permanent magnet generator 3-phase AC PM

Output voltage

DC48v-DC520v可选

Insulation level

B

Working temperature

-25- 55

Overspeed protection

Pitch control over speed protection

Ausiliary power supply

no

Tower type

Guy cable tower or mono pole tower

Tower height

10-15m optional

Noise level

<70dB

Top weight

540kg

IP code

IP54

Surface treatment

Zinc plating surface paint

Controller and inverter

Off gridPWM wind solar hybrid controller,inverter or grid tie inverter
