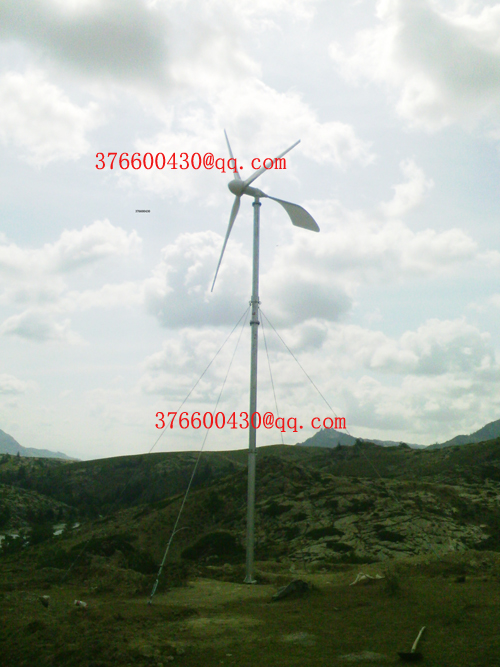

Product name : home use wind turbine 2kw

Item :

Details :

Item	2000W
blade diameter	3.8m
material of the blades	Fiberglass-Reinforced Plastic
rated rotor speed	320r/min
rated speed	8m/s
rated Power	2000W
max Power	2500w
Max start torque (n/m)	＜0.8
output voltage	72V
start up wind speed	2.5(m/s)
work speed	3-25(m/s)
security wind speed	50(m/s)
height of guy cable tower	6(m)
Generator shell material	Casting steel
generator type	3-phase AC PM
top quality except tower	90kg
Suggest batteries	6pcs 12v 100ah
Service life	>15 years
output controller system	On/off--grid controller, On/off--grid inverter
Mated solar panel	72v600w--800w
Class of insulation	B
Material of enclosure	20# seamless tube
Material of magnet steel	neodymium-iron-boron 38sh
Material of stator	QZY-2/180/470
Corrosion prevention	Zinc coated、painting
Blades shape	3 FRP blades
Over speed protection	Yaw automatically, electromagnetism protection，shaft wind pressure tail protection

We are Qingdao Wind Power Generator Co Ltd. Professionally produce wind turbine, From 2004, we begin to work in wind energy develop and research, produce.

Power range from 300w to 50kw.

The advantage of our wind turbine is low rated wind speed. It means around 7m/s-9m/s the wind turbine could reach rated power. This means it could make full use of the wind energy even at low wind speed area, like 4m/s to 6m/s.

Could supply you with wind solar hybrid solution. And pure wind system or pure solar panel system. The 30kw, 50kw is the pitch control wind turbine.

Offer you with best price-performance ratio solution according to your requirements.

Wind turbine, Solar panel,Wind solar hybrid system,Solar street lighting,

Wind solar hybrid street lighting
